B001-2 Two-Electrode Battery Test Cell

Product overview

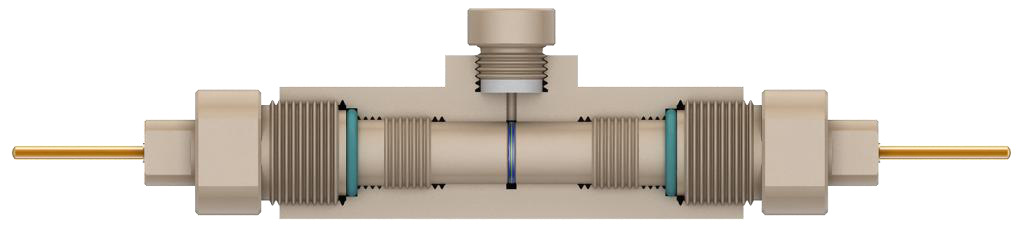

Model B001-2 compresses the positive and negative sample wafers around a separator using glassy carbon contacts. The PEEK body includes a top liquid inlet/outlet screw arrangement. Define the specimen size, separator and electrolyte before ordering, and include the electrical lead and sealing requirements needed by your battery tester.

Specifications & ordering details

Use these parameters to define your requirement. The quotation confirms the exact supplied specification.

Material / system	PEEK body; glassy carbon contacts
Catalog model	B001-2
Body material	PEEK
Electrode arrangement	Two electrodes
Conductive contacts	Glassy carbon; catalog diameter 3 mm
Sample wafer sizes	10, 12 or 16 mm
Active area and flow-field design	Specify with your requirement.
Plate / current-collector materials	Specify with your requirement.
Connections and included accessories	Specify with your requirement.

Research applications

Two-electrode battery studies
Coin-cell material screening
Compression-contact measurements

Before you order

Specify the wafer size and separator.
Provide the electrolyte and contact requirements.
Confirm seals, ports and electrical interfaces.

Product documents

View the source catalog for this offering. Share your grade, model and application to request the relevant specification or material documentation.

View Electrochemistry, Flow & MEA Systems — page 57 ↗Download PDF

Selection questions

What should a custom enquiry include?

For B001-2 Two-Electrode Battery Test Cell, provide the active area, sample or electrode geometry, materials, interfaces and the operating conditions. Include drawings and identify every component in the assembly scope.

Are electrodes, membranes and accessories included?

Specify the parts required. Hardware, membranes, electrodes, gaskets, fittings and instruments should be identified separately in the quotation.
