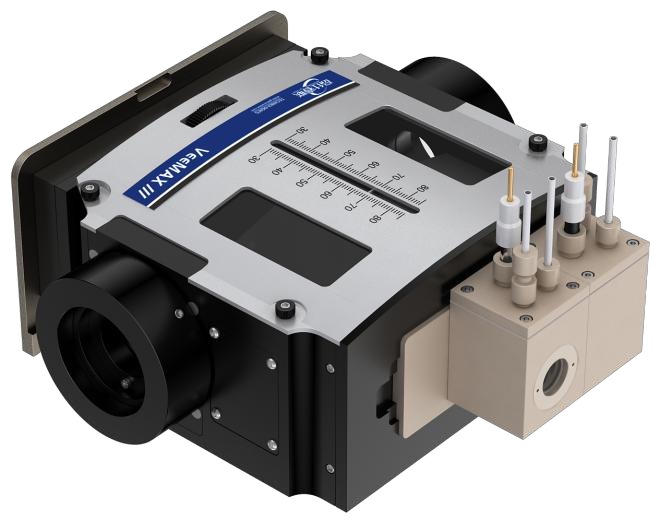

IFA-1 Internal-Reflection IR Cell

Product overview

The IFA-1 is the internal-reflection configuration of the removable-membrane H-type infrared cell. Its catalog working substrate is monocrystalline silicon supplied without gold plating; a prepared conductive coating and catalyst layer form part of the experimental setup. Specify the compatible optical path and substrate preparation separately, rather than assuming that a complete plated working electrode is included.

Specifications & ordering details

Use these parameters to define your requirement. The quotation confirms the exact supplied specification.

Material / system	Removable-membrane H-type cell; monocrystalline silicon window
Catalog model	IFA-1
Reflection mode	Internal reflection
Working substrate	Monocrystalline silicon; without gold plating
IR window material	Monocrystalline silicon
Catalog cell volume	Less than 20 mL
Gas interfaces	Anode and cathode inlet/outlet ports
Instrument and optical / beam geometry	Specify with your requirement.
Sample, electrode and window requirements	Specify with your requirement.
Connections and included accessories	Specify with your requirement.

Research applications

Internal-reflection spectroelectrochemistry
Catalyst-coated silicon studies
Membrane-separated infrared measurements

Before you order

Identify the infrared instrument and matching optical path.
Specify silicon preparation, plating and catalyst requirements.
Confirm membrane, graphite counter and Ag/AgCl reference scope.

Product documents

View the source catalog for this offering. Share your instrument model, configuration and application to request the relevant specification or material documentation.

View Electrochemistry, Flow & MEA Systems — page 10 ↗Download PDF

Selection questions

How do I check the instrument interface?

Share the instrument make and model, sample geometry, optical or beam path, mounting arrangement and drawings. The cell and instrument interfaces must be reviewed together.

Which experimental conditions are needed?

Specify temperature, pressure, atmosphere or electrolyte, and electrical connections. Confirm sample access, windows, fittings and accessories for the selected method.
