IFA-2 External-Reflection IR Cell

Product overview

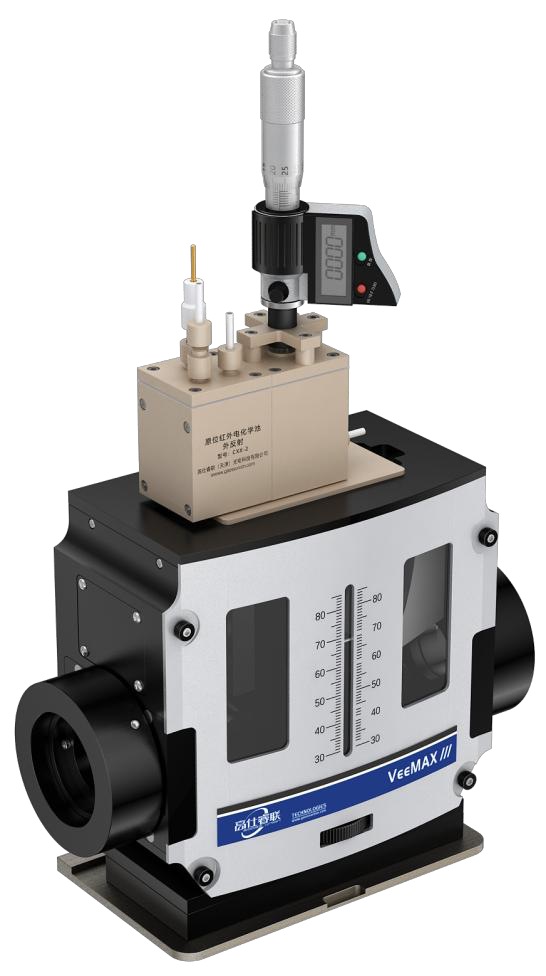

The IFA-2 uses a catalyst-coated glassy-carbon working surface for external-reflection infrared measurements. The integrated micrometer changes the spacing between the working electrode and crystal, allowing the liquid-layer geometry to be adjusted for the experiment. This electrode and optical arrangement differs from IFA-1 internal reflection; confirm the instrument optical path before selecting a version.

Specifications & ordering details

Use these parameters to define your requirement. The quotation confirms the exact supplied specification.

Material / system	H-type cell; micrometer-adjusted glassy-carbon electrode
Catalog model	IFA-2
Reflection mode	External reflection
Working electrode	10 mm glassy-carbon core; integrated micrometer
IR window material	Monocrystalline silicon
Catalog cell volume	Less than 20 mL
Gas interfaces	Anode and cathode inlet/outlet ports
Instrument and optical / beam geometry	Specify with your requirement.
Sample, electrode and window requirements	Specify with your requirement.
Connections and included accessories	Specify with your requirement.

Research applications

External-reflection infrared studies
Thin-liquid-layer electrochemistry
Catalyst-coated disc measurements

Before you order

Confirm the external-reflection optical path.
Specify the electrode-to-crystal adjustment requirement.
Define membrane, counter/reference electrodes and included fittings.

Product documents

View the source catalog for this offering. Share your instrument model, configuration and application to request the relevant specification or material documentation.

View Electrochemistry, Flow & MEA Systems — page 10 ↗Download PDF

Selection questions

How do I check the instrument interface?

Share the instrument make and model, sample geometry, optical or beam path, mounting arrangement and drawings. The cell and instrument interfaces must be reviewed together.

Which experimental conditions are needed?

Specify temperature, pressure, atmosphere or electrolyte, and electrical connections. Confirm sample access, windows, fittings and accessories for the selected method.
